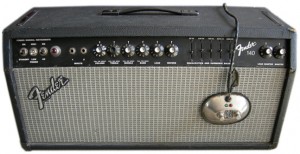

Fender 140

Schematic(s) 140.pdf

Model/Circuit Number: 140
Years of Production:
Configuration: Head
Controls: Black forward facing with white labels
Knobs: Black skirted with chrome center, numbered 1 – 10

  • Front: Standby switch, High/Low power switch, Power switch, pilot light, in 1, in 2, Volume/Bright switch, Treble/Boost switch, Middle/Boost switch, Bass/Boost switch, Lead, Reverb, Equalization and Harmonic Balance sliders: 90 Hz, 240 Hz, 750 Hz, 2300 Hz, 6200
  • Rear:


  • Dimensions:
  • Hardware: Black metal chassis straps, side mounted vents
  • Handle: Black strap handle w/ black end caps
  • Feet: Glides
  • Corners: Black Metal

Covering Material

  • Tolex/Tweed: Black tolex
  • Grill Cloth: Black

Logo: Raised, Chrome and black script
Weight: 53 lbs

Effects: Reverb
~Watts: 140 Watts

  • Pre amp: (1) 12 AT7 ; (3) 12AX7 ; (1) 7025
  • Power: (4) 6L6

Bias: Fixed
Rectifier: Solid State
