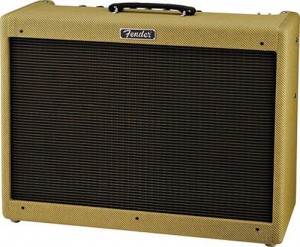

Fender Blues Deluxe

Model/Circuit Number:
Years of Production: 1993 – 1997
Era:
Configuration: Combo
Controls: Chrome top facing w/ white screened labels, controls numbered 1-12
Knobs: Black pointer

Schematics

Faceplate:

  • Front: Power Sw, Standby Sw, Pilot Lamp, Power Amp In, Preamp Out, Foot Switch, Presense, Reverb, Master Vol, Mid, Bass, Treb, Drive LED, Drive, Drive Sw, Vol, Bright Sw, In 2, In 1
  • Rear: None

Cabinet:

Tolex/Tweed:

Grill Cloth:

Logo: Cabinet mounted, Script
Weight: 40 lbs
Speaker:

Effects: Reverb
Watts: 40 watts
Tubes:

  • Pre amp: 12 AX7
  • Power: 2 6L6
  • Bias: Fixed
  • Rectifier: Solid State

Comments:
Reverb Driver: Solid State Reverb Recovery: Solid State

7 thoughts on “Fender Blues Deluxe

  • October 6, 2011 at 4:04 pm
    Permalink

    Kick Ass Amp. Retube, Re-Speaker with a Vintage 30, Play Loud and pedal it up!

    Reply
  • March 16, 2013 at 2:42 am
    Permalink

    I just played through one of these its a great sounding amp nice low volume crunch is obtainable I connected my pedal board and was in the tone zone in no time.

    Reply
  • November 2, 2014 at 10:57 am
    Permalink

    awesome amp,added ex speaker “canabis rex”=awesome clean channel

    Reply
  • July 1, 2015 at 3:40 pm
    Permalink

    Gotta 90 watt Celestion Black Shadow in my ’94, and this amp is just amazing. I like to run up the bass 3/4 and the treble only 1/3 or so; presence 3/4. Roll off some of the back PUP treble on a Stratocaster, and it sounds really good.

    Reply
  • July 29, 2020 at 6:23 am
    Permalink

    How to use extension speakers?

    Reply
    • December 31, 2022 at 1:29 pm
      Permalink

      It’s possible to add 8 ohm in the external speaker jack – not lower.

      Reply
