Fender Blues DeVille

March 14, 2011 in Amplifiers

Schematic(s) blues_deville.pdf

Brand: Fender

Era:

Line: Blues

Configuration: Combo

Production: 1993, 1994, 1995, 1996, 1997

Model/Circuit Number:
Years of Production: 1993-1997
Era:
Configuration: Combo
Controls: Chrome top facing w/ white screened labels, controls numbered 1-12
Knobs: Black Pointer
Faceplate:

Front: Power Sw, Standby Sw, Pilot Lamp, Power Amp In, Preamp Out, Foot Switch, Presense, Reverb, Master Vol, Mid, Bass, Treb, Drive LED, Drive, Drive Sw, Vol, Bright Sw, In 2, In 1
Rear: None

Cabinet:

Dimensions:
Hardware:
Handle: Brown Plastic Handle
Feet: Chrome Glides
Corners: None

Tolex/Tweed:

Grill Cloth:

Oxblood

Logo: Cabinet mounted, Script
Weight: 62 lbs
Speaker:

Size: 2 x 12 or 4 x 10
Impedance: 4 ohms or 2 ohms
Model: Eminance(For more info, check out the Jensen Replacement Speakers)

Effects: Reverb
Watts: 60 watts
Tubes:

Pre amp: 12AX7
Power: 2 x 5881
Bias: Fixed
Rectifier: Solid State

Comments:

Nsadave

great amp……..i have a 1996 year, had no trouble with it….all original.
Berol

I’m having trouble with the dive channel i have a 93, and I read some were about something being wrong with the tube cap’s or something like that. I’m hoping it’s only a bad tube.
- mojotone

  HI Berol, what is your amp doing/ not doing?
mdhsabh

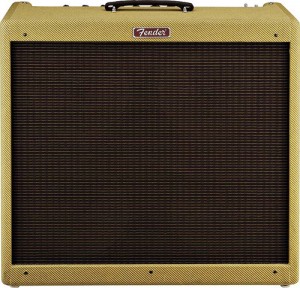

The picture is a 410, not a 212
- Steve Snyder

  The amp was available as either a 2×12 or 4×10. I have updated the specs for the speaker configuration.
