Fender Wide Panel Tweed Champ

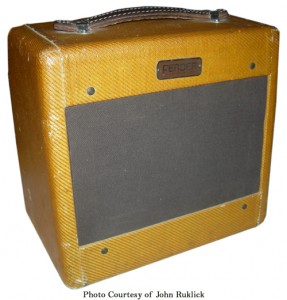

Champ_WP_1954
Schematic(s) champ_5c1.pdf
Brand:
Line:
Configuration:
Production: , ,

Model/Circuit Number: 5C1, 5D1
Years of Production:
1953 – 1955
Era: Wide Panel
Configuration: Combo
Controls: Brown, rear facing w/ white screened labels, controls numbered 1-12
Knobs: Black Chicken Head
Faceplate:

  • Front: In, In, Vol/Power Sw – Pilot Lamp, Fuse (2A)
  • Rear:

Cabinet:

Tolex/Tweed:

Grill Cloth:

Logo: Cabinet Mounted, block letter
Weight: 12 lbs
Speaker:

Effects: None
Watts: 4 watts
Tubes:

  • Pre amp: 6SJ7
  • Power: 6V6GT
  • Bias: Cathode Biased
  • Rectifier: 5Y3GT

Comments:
Also know as: “Champ Amp” in the paper catalog, and ”600” Amp on the control panel. in 1955 another variation appeared where the control panel was labeled ”Champ Amp.”
