Fender Blackface Champ

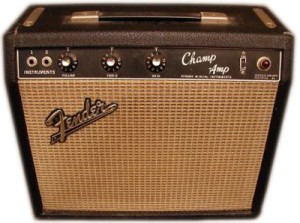

Champ_Blkface-1965
NO Schematic
Brand:
Line:
Configuration:
Production: , , ,

Model/Circuit Number:
Years of Production:
1964 – 1967
Era: Blackface
Configuration: Combo
Controls: Black forward facing w/ white labels
Knobs: Black skirted w/ chrome center, numbered 1 – 10
Faceplate:

  • Front: In, In, Vol, Treb, Bass – Power Sw, Pilot Lamp
  • Rear:

Cabinet:

Tolex/Tweed:

Grill Cloth:

Logo: None ~ 1964-1965, Grill mounted, raised, chrome and black script ~ 1966-1967
Weight:
Speaker:

Effects: None
Watts: 6 watts
Tubes:

  • Pre amp: 12AX7
  • Power: 6V6GT
  • Bias: Cathode Bias
  • Rectifier: 5Y3GT

Comments:
The speaker jack and fuse (1A) are located under chassis.
