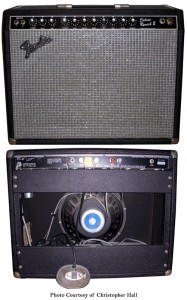

Fender Deluxe Reverb II
Model/Circuit Number:
Years of Production: 1982 – 1986
Era:
Configuration: Combo
Controls: Black, forward facing w/ white labels
Knobs: Black skirted w/ chrome center, numbered 1 – 10
Schematics
Faceplate:
- Front: In 1, In 2, Vol (Pull for Bright), Treb, Bass – Vol (Pull for Ch Select), Gain, Master Vol, Treb, Mid (Pull for Boost), Bass, Reverb, Presense – Power Sw, Pilot Lamp
- Rear: Fuse, Outlet (grounded, polarized), Ground Sw (A/Off/B), Speaker (1/4
Cabinet:
- Dimensions: 23 5/8″ x 18 1/4″ x 11 1/4″
- Hardware: Medium Chassis Straps 4 5/8″
- Handle: Black Strap
- Feet: Glides
- Corners:
Tolex/Tweed:
Grill Cloth:
Logo: Grill mounted, raised, chrome & black script
Weight: 32 lbs.
Speaker:
- Size: 1 x 12
- Impedance: 8 ohms
- Model: (For more info, check out the Jensen Replacement Speakers)
Effects: Reverb, Channel Switching
Watts: 20 watts
Tubes:
- Pre amp: 7025 ; 12AT7
- Power: 2 x 6V6GTA
- Bias: Fixed
- Rectifier: Solid State
