Fender Narrow Panel Vibrolux

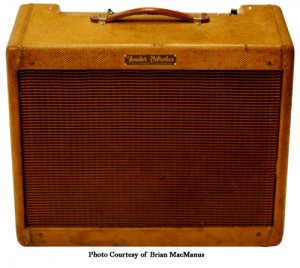

Fender Vibrolux Narrow Panel 1957
Brand:
Line:
Configuration:
Production: , , , , ,

Model/Circuit Number: 5E11, 5F11
Years of Production:
1956 – 1961
Era: Narrow Panel
Configuration: Combo
Controls: Chrome top facing w/ white screened labels, controls numbered 1-12
Knobs: Black Chicken Head
Faceplate

  • Front: Fuse (¾A), Power Sw, Pilot Lamp, Depth, Speed, Tone, Vol, In, In, In
  • Rear:

Cabinet

  • Dimensions: 16¾ x 20 x 9½
  • Hardware:
  • Handle: Leather Handle
  • Feet: Glides
  • Corners:



Covering Material

  • Tolex/Tweed: Diagonal Tweed
  • Grill Cloth: Brown Grill Cloth

Logo: Cabinet mounted, Script
Weight: 21 lbs.
Speaker

Effects: Tremolo
~Watts: 10 watts
Tubes

  • Pre amp: 12AX7
  • Power: 2 x 6V6GT

Bias: Fixed bias, nonadjustable
Rectifier: 5Y3GT

Comments: The preamp used half of the phase inverter 12AX7 and half of the tremolo 12AX7. A selenium rectifier is used in the bias circuit. A speaker and tremolo footswitch jack are located on the bottom of the chassis.
