Fender Prosonic Head

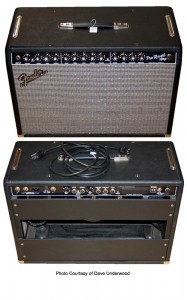

Fender_Pro_Tube_Reverb
Schematic(s) prosonic.pdf
Brand:
Era:
Line: ,
Configuration:

Model/Circuit Number:
Years of Production:
1995 – Present
Era:
Configuration: Piggyback
Controls: Black, forward facing w/ white screened labels, controls numbered 1-10
Knobs: Black Chicken Head
Faceplate

  • Front: In, In, Channel Sw, Vol, Gain 1, Gain 2, Treb, Bass, Mid, Master – Pilot Lamp
  • Rear: Rectifier Sw, Power Sw, Standby Sw, Speaker Jack, Footswitch

Cabinet

  • Dimensions: 9 x 24 x 9½
  • Hardware: Medium Chassis Straps 4 5/8”
  • Handle: 2 Recessed Side Handles
  • Feet: Removable Casters
  • Corners: Corner Protectors



Covering Material

  • Tolex/Tweed: Black Tolex
  • Grill Cloth: Silver Sparkle or Black Grill Cloth

Logo: Grill mounted, flat, chrome & black script
Weight: 35 lbs.
Speaker

Effects: Channel Switching
~Watts: SS Rect/AB: 60 watts; Tube Rect/AB: 50 watts; Tube Rect/A: 30 watts
Tubes

  • Pre amp:
  • Power: 2 x 6L6

Bias: Fixed Bias
Rectifier: Class A/Tube, Class AB/Tube, Class AB/Solid State (switchable)

Comments: The Prosonic includes a switch for changing the operation class of the amplifier. (see Rectifier)
