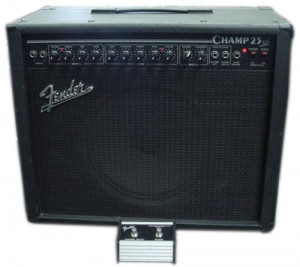

Fender Champ 25 (25SE)

Champ_25SE
Schematic(s) champ_25_se.pdf
Brand:
Era:
Line:
Configuration:
Production: , ,

Model/Circuit Number:
Years of Production:
1992 – 1994
Era:
Configuration: Combo
Controls: Black forward facing w/ white labels, controls numbered 1-10
Knobs: Black Round, unnumbered
Faceplate:

  • Front: Normal: In, In, Treb, Mid, Bass, Mid Shift Sw – Drive: Vol, Gain, Treb, Bass, Contour – Master Vol, Reverb – Effect Out, Effect In – Line Out – Standby Sw, Power Sw
  • Rear: Fuse (1A)

Cabinet:

  • Dimensions:
  • Hardware:
  • Handle: Black Strap
  • Feet: Glides
  • Corners: Plastic Corner Protectors

Tolex/Tweed:

Grill Cloth:

Logo: Grill mounted, raised, chrome & black, script
Weight: 38 lbs
Speaker:

Effects: Reverb, Channel Switching
Watts: 25 watts
Tubes:

  • Pre amp: Solid State. A 12AX7 tube is listed on the schematic, but this is for a phase inverter.
  • Power: 2 x 6L6GC
  • Bias:
  • Rectifier: Solid State

Comments:
The SE model included a headphone jack and a channel/reverb footswitch The Effect Out, Effect In and Line Out jacks were on the front panel of the SE model only.
