Fender Woody Deluxe (Model 26)

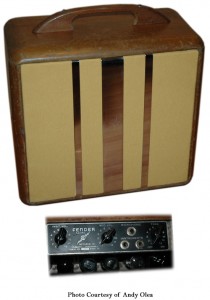

Deluxe_Woody-26
NO Schematic
Brand:
Era:
Line:
Configuration:
Production: , ,

Model/Circuit Number: Model 26
Years of Production:
1946 – 1948
Era: Woody
Configuration: Combo
Controls: Rear facing w/ white screened labels, controls numbered 1-12
Knobs: Black Chicken Head
Faceplate

  • Front: Vol, Mic Vol ,In ,Mic In, In, Tone/Power
  • Rear:

Cabinet

  • Dimensions:
  • Hardware: Matching wood handles
  • Handle:
  • Feet: Glides
  • Corners:



Covering Material

  • Tolex/Tweed: Uncovered. Natural finish maple, walnut, or mahogony
  • Grill Cloth: Red, blue or gold fabric w/ 2 (early `46) or 3 chrome slats

Logo: None
Weight:
Speaker

Effects:
~Watts: 10-14 watts
Tubes

  • Pre amp: Metal envelope 6SN7
  • Power: 2 x Metal Envelop 6V6

Bias: Cathode Bias
Rectifier: Metal Envelope 5Y3

Comments: Deluxe amps with the field coil speakers had the output transformers mounted on the chassis. When Fender switched to fixed magnet speakers some time in 1947 the output transformer was mounted on the speaker basket.
